Benchtop Drying Oven

Model: DZF-6020
Maximum temp, °C: 250
Continuous operating temp, °C : 250
Chamber Size: 300x300x275
External Size: 550x640x540
Send Inquiry

Product Description Important Parameters

Description



Vacuum Oven is specially designed to dry thermo-sensitive,oxidative materials under vacuum condition in industrial and mining enterprises, laboratories, and scientific research institutes. The inner chamber can be filled with inert gases for fast drying.

Temperature range RT+10 °C ~ +200 °C, capacities ranging from 20 liters to 210 liters.



Features



The shell chamber is made of reinforced steel with a coated finish; the working chamber is 304 stainless steel with multiple shelf supports for maximum effective space.

Intelligent PID control, LED display, double-layer bulletproof glass door.

Designed for gentle drying with uniform temperature distribution.

Nitrogen drying oven: can be filled with protective gas for oxygen-free preservation.

Vacuum drying oven: capable of vacuuming for negative pressure preservation.

Microcomputer temperature controller automatically adjusts control parameters based on ambient temperature and load size, ensuring reliable temperature accuracy.

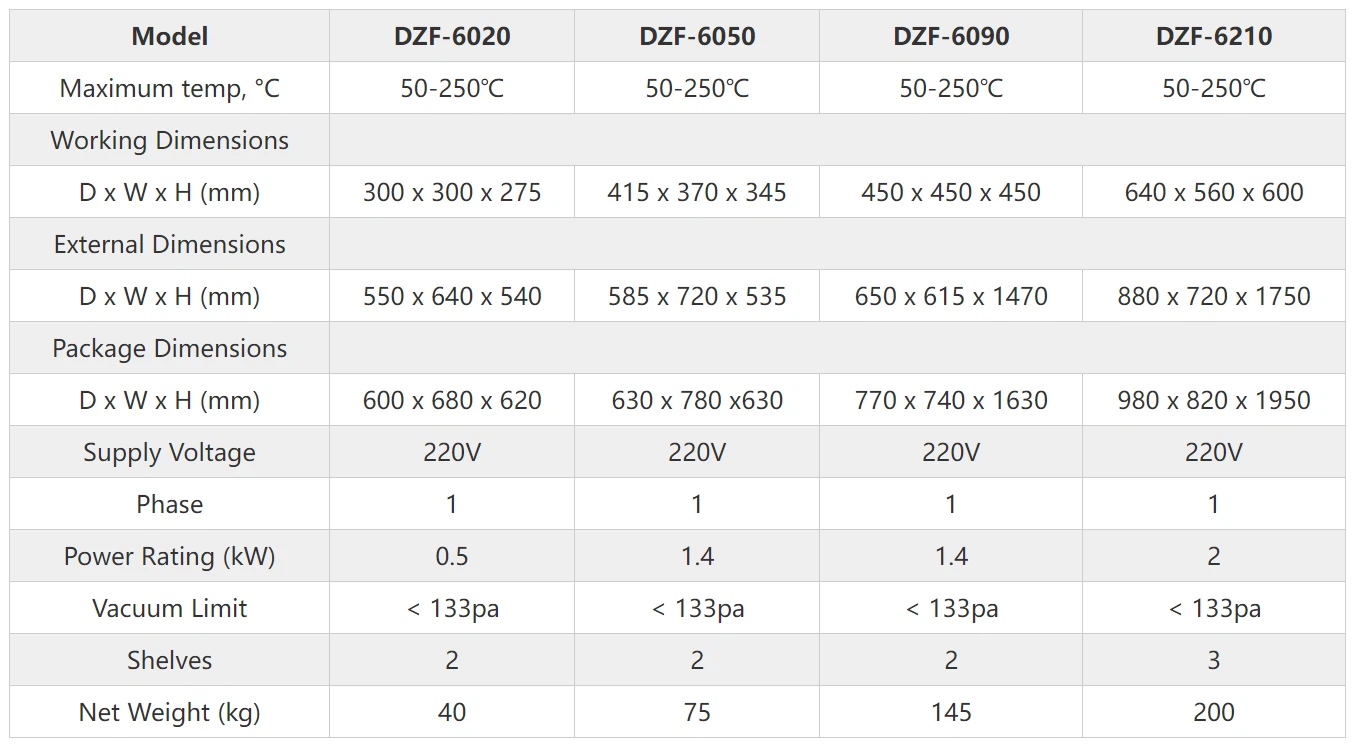

Comparison



product-1357-751





Hot Tags: benchtop drying oven, China benchtop drying oven manufacturers, factory, Laboratory Gravity Convection Oven, High Temperature Stainless Steel Vacuum Box Furnace, Clean Room Oven, 1100 Industrial Vertical Tube Furnace, 1200 Vacuum Ceramic Fiber Furnace, vacuum muffle furnace

Model

DZF-6020

Maximum temp, °C

250

Continuous operating temp, °C

250

Chamber Size

300x_300x_275

External Size

550x_640x_540

Power Voltage

220V / 50Hz

Power Phase

1

Power Rating (kW)

0.5

Chamber material

SU 304

Heating Rate,

5℃ / min

Temperature Stability, ℃

0.5℃

Temperature Uniformity

±1%

Weight (kg)

32KG

Vacuum Limit

<1torr(133Pa)
