Q235 low-carbon steel shell, robust and durable with corrosion resistance.

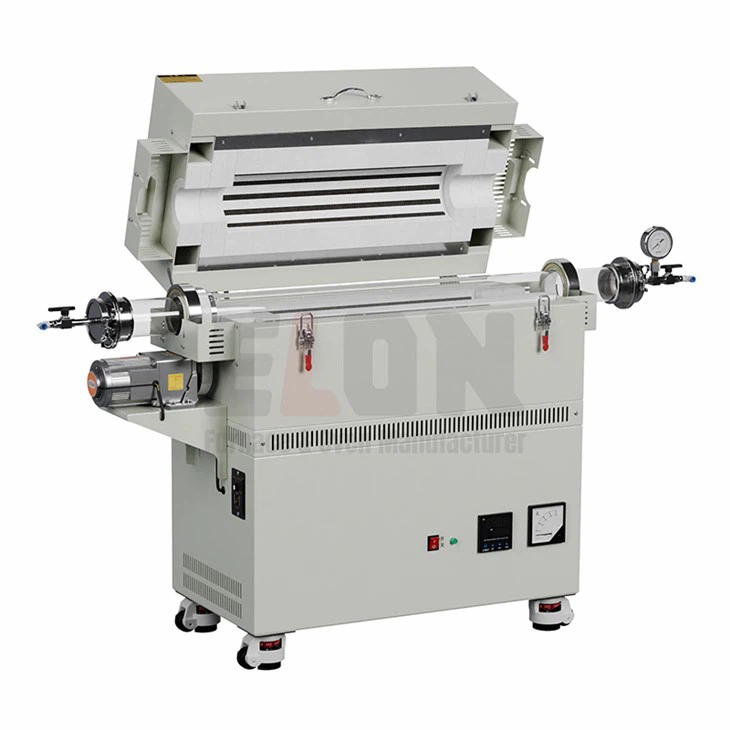

The furnace chamber can be opened for quick cooling and easy observation.

Protective covers on both sides extend heating length and enhance safety.

Quartz tube, quick-connect flange, and pressure gauge.

High-grade ceramic fiber, dual-layer material with high insulation and low mass.

Rapid heating cycles and reduced energy consumption.

K-type thermocouple.

Customizable tube diameters ranging from 40-100mm.

Customizable heating length from 380-600 mm.

Heating rate of 30℃/min.

Heating wires embedded in ceramic fiber, ensuring safety and no contamination.

Branded rotary motor with adjustable speeds.

Equipped with Pneumatic elbow connector, ensuring reliable air-tightness and 360-degree rotational flexibility.

Durable branded contactors and solid-state relays, ensuring a quiet and noise-free heating process.

LTDE program controller with 50-segment heating curve.

Multiple heating modes, multi-segment constant temperature, and uniform heating rate.

Self-tuning PID adjustment to set appropriate PID parameters based on the customer's temperature requirements, preventing overshoot.

Dual safety protection with over-temperature alarm and over-current protection.

Touchscreen controller displaying temperature curves on the controller screen, enabling more convenient one-touch operations.

Paperless recorder for printing heating curves.

Alarm light that triggers when the controller alarm is activated.

Temperature controller RS232/RS485 communication for data collection and command transmission via computer (secondary development).

Customized quartz tubes with internal protrusions to enhance stirring performance.
