Description

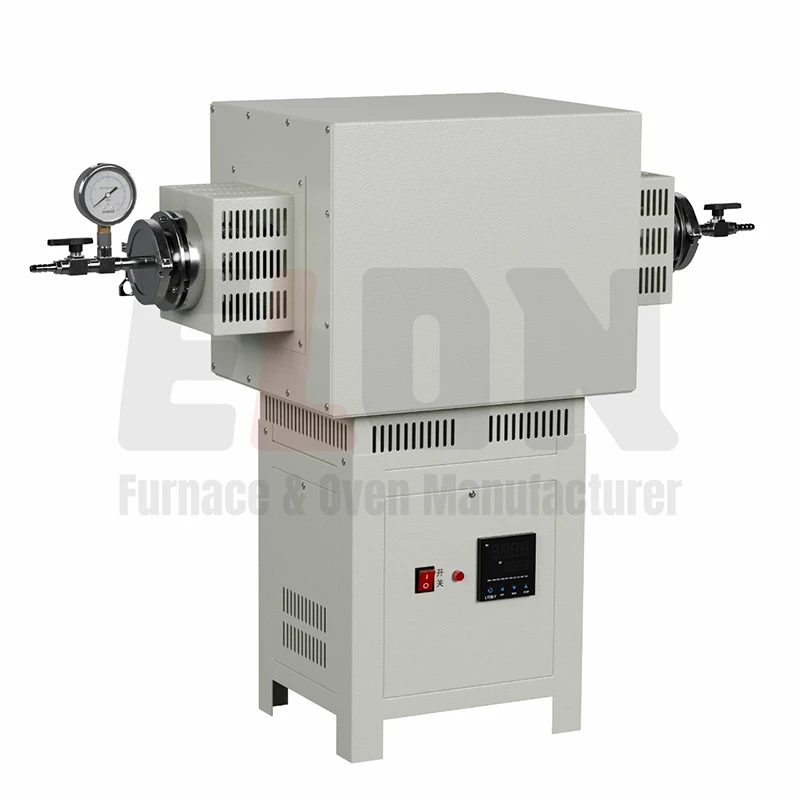

The casing is made of EN S-235 steel treated with high-temperature phosphating and coating, offering corrosion resistance and durability, ensuring energy efficiency and superior thermal insulation.
Equipped with quartz tubes, quick-connect flanges, and pressure gauges, suitable for vacuum experiments.
Uses high-grade ceramic fiber rated for 1400℃, providing lightweight, high insulation, and energy-saving properties.
Employs a K-type (Chromel/Alumel) thermocouple, ensuring sensitive temperature measurement and accurate readings.
Integrated ceramic heating plates with embedded heating wires, tube diameters from 20 to 100 mm, lengths up to 680 mm, heating rate up to 50℃/min, and solid-state relay heaters for noiseless, precise control, ensuring high quality and reliability.
LTDE controller supports up to 50-segment programming, compatible with constant temperature and gradient heating, featuring self-tuning PID adjustment, over-temperature, and over-current protection, ensuring high quality and reliability.
Option
Touch screen temperature controller.
Paperless recorder.
Alarm system.
Safety limiter compliant with EN 60519-2.
Multiple communication interfaces with PC.
Multi-zone control configuration.
Three-way valve system.
Vacuum pump with oil mist filter.
Extra quartz tubes.
One-year extended warranty
