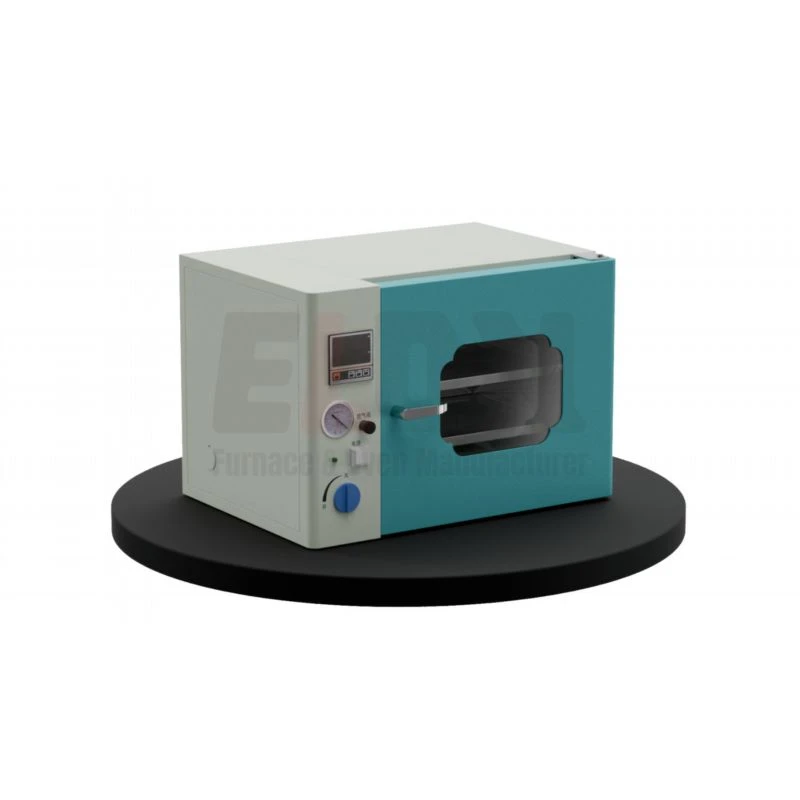

20L Bench Top Vaccum Oven (250℃)

Model: DZF-6020
Maximum temp, °C: 250
Continuous operating temp, °C: 250
Chamber Size: 300x300x275
External Size: 550x640x540
Send Inquiry

Product Description Important Parameters

Description



Suitable for laboratory and industrial applications requiring precise temperature control and low-pressure environments. Common uses include:

Anti-oxidation drying processes

Sterilized sample preservation

Drying electronic components

Chemical processing

Biotechnology and pharmaceutical industries

Drying and preservation in the food industry

Other vacuum drying processes



Features



Premium low-carbon steel exterior, durable and corrosion-resistant

Stainless steel chamber ensures longevity

Tempered, bulletproof double-glazed door for clear observation

Adjustable door tension with integrated silicone rubber seal for high vacuum

High-density fiberglass insulation in all sides

Vacuum environment lowers liquid boiling points, ideal for heat-sensitive materials

Perfect for drying complex mechanical parts or porous samples without residue

Microcomputer temperature controller adjusts automatically for reliable precision



Safety Protection



Electrical overload protection and undervoltage protection.

Controller over-temperature protector with upper limit over-temperature alarm and automatic heating cut-off.

Automatic program recovery after power restoration.



Comparison



product-1356-754





Hot Tags: 20l bench top vaccum oven (250℃), China 20l bench top vaccum oven (250℃) manufacturers, factory, Gravity Convection Ovens, 50L DHG Bench Top Oven 250 , Tabletop Drying Oven, Precision Laboratory Benchtop Oven, 20L Bench Top Vaccum Oven 250 , Laboratory Table Oven

Model

DZF-6020

Maximum temp, °C

250

Continuous operating temp, °C

250

Chamber Size

300x_300x_275

External Size

550x_640x_540

Power Voltage

220V / 50Hz

Power Phase

1

Power Rating (kW)

0.5

Chamber material

SU 304

Heating Rate,

5℃ / min

Temperature Stability, ℃

0.5℃

Temperature Uniformity

±1%

Weight (kg)

32KG

Vacuum Limit

<1torr(133Pa)
