Description
Adopts silicon carbide liner, high wear resistance, four-side heating in high-temperature furnace, uniform temperature. Q235 shell material, aesthetically pleasing. Programmable controller uses full-automatic LTDE instrument with adjustable heating rate, PID+SSR system synchronous control to ensure experimental consistency and reproducibility. Features automatic temperature control and timing functions, dual-level over-temperature automatic protection, reliable control, and safe use. The controller is located at the bottom of the box, integrated production, electrical connections completed, ready to use upon connection. Suitable for universities, research institutions, laboratories, etc., for element analysis, material ash powder, high-temperature sintering, small steel part processing, and production of crystals, jewelry, mirrors, etc.
Programmable High-Temperature Furnace SXF-12 Detailed Information
Temperature Measurement: S Type Platinum Rhodium-Platinum Thermocouple;
Control System: LTDE fully automatic programmable instrument, PID regulation, display accuracy 1℃
Complete Electrical Set: Using branded contactors, cooling fans, solid-state relays;
Timing Control: Adjustable heating time, constant temperature control, automatic shutdown when constant temperature time is reached;
Over-temperature Protection: Built-in dual-level over-temperature protection device, dual insurance;
Operating Mode: Full-range adjustable constant temperature, constant operation; program operation.
Furnace Shell
Shell Material: Outer shell made of Q235 high-quality cold plate low carbon steel
Shell Process: High-temperature plastic spraying after phosphoric acid membrane salt treatment, color is computer gray; has electrostatic resistance and corrosion resistance.
Inner Shell of Furnace Core: Metal frame shell structure, low surface temperature of the furnace

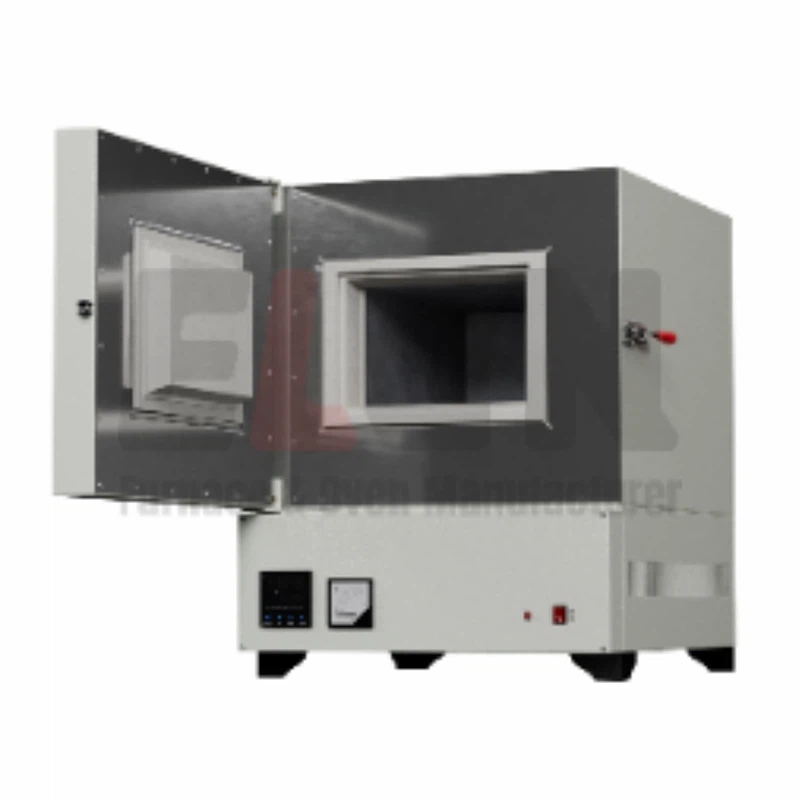

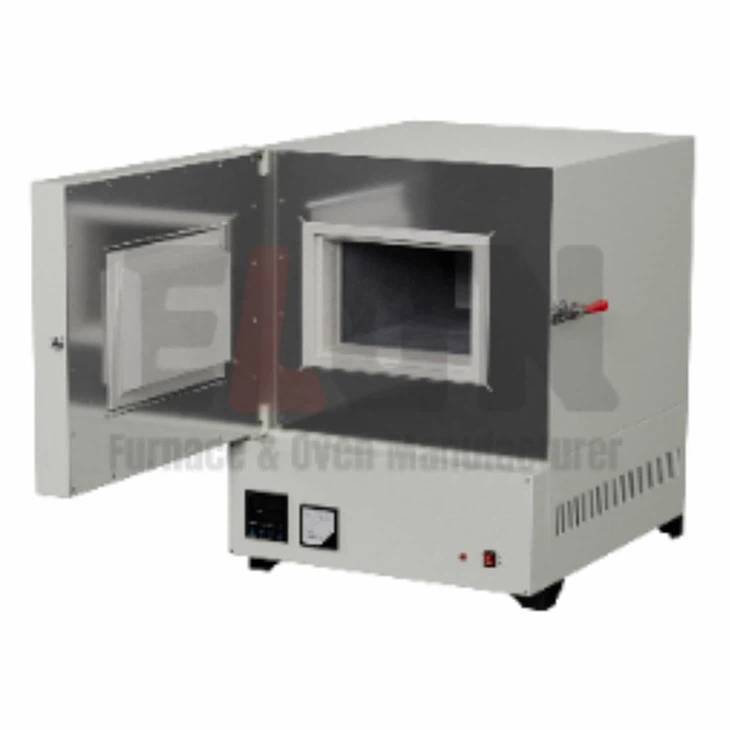

Door Opening Method: Side-opening furnace door structure, door opens to the right, easy to operate.
Standard Packaging: Wooden box
Refractory Materials
Furnace Core Material: Adopts high-temperature resistant silicon carbide liner, good wear resistance, four-side heating (up, down, left, right) in high-temperature furnace;
Heating wires embedded in the furnace core, heating elements are better protected, ensuring the stability and safety of the high-temperature furnace.
Insulation Method: Insulation bricks and insulation cotton;
Heating System
High-quality HRE spiral resistance wire heating elements are securely embedded in the furnace surface, heating the furnace chamber via free heat radiation, energy-efficient, and long-lasting.
Four-side heating (left and right sides, up and down) to achieve good uniformity inside the furnace.
Thermocouple enters from the upper rear of the furnace body;
Heating wire terminals are located at the lower rear of the furnace body;

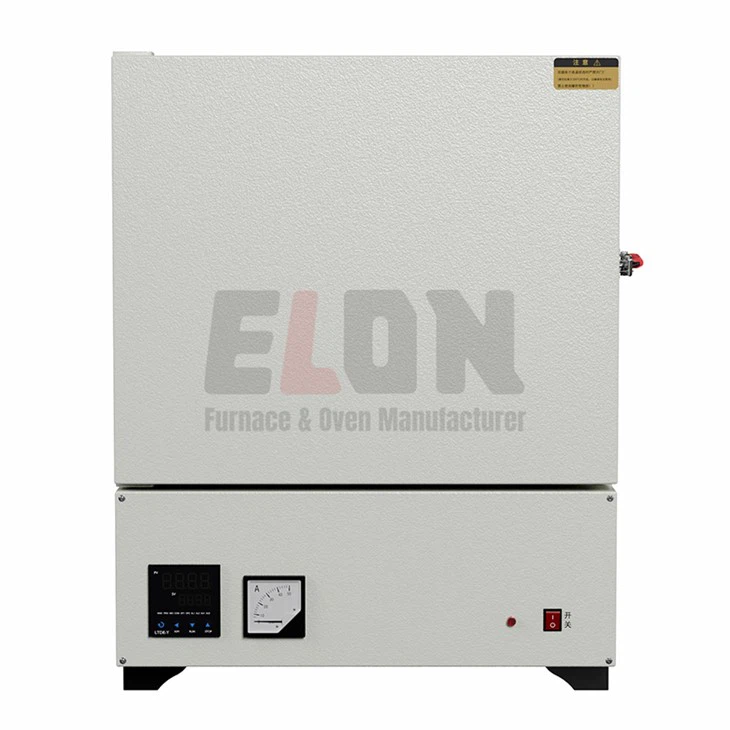

Temperature Control Panel
Located at the bottom of the furnace body, integrated molding, built-in control system, compensating wire connects to the furnace body
PID and SSR control mode, precise temperature control.
International standard K-type nickel-chromium-silicon thermocouple, temperature range of 0-1300℃, long lifespan.
Furnace door equipped with a door-open power-off safety switch.
Program Control System
LTDE fully automatic programmable instrument, PID regulation, display accuracy 0.1℃
Built-in dual-level over-temperature protection device, dual insurance;
Full-range adjustable constant temperature, constant operation; program operation.
Adjustable heating time, constant temperature control, automatic shutdown when constant temperature time is reached.
Programmable 50-segment curve program, advanced controller meeting complex process requirements
Technical Data And Accessories Provided
Operating instructions Product warranty card
After-Sales Service
Responsible for remote technical guidance for users Timely provision of spare parts and accessories for the equipment Provide technical consultation and support during equipment use Respond immediately within 8 working hours upon receiving customer fault notification
